PURIFY
Next-generation radio interferometric imaging
Functions
distribute_sparse_vector.cc File Reference
#include <random>
#include <set>
#include <purify/AllToAllSparseVector.h>
#include <purify/DistributeSparseVector.h>
#include "catch2/catch_all.hpp"
#include <sopt/mpi/communicator.h>

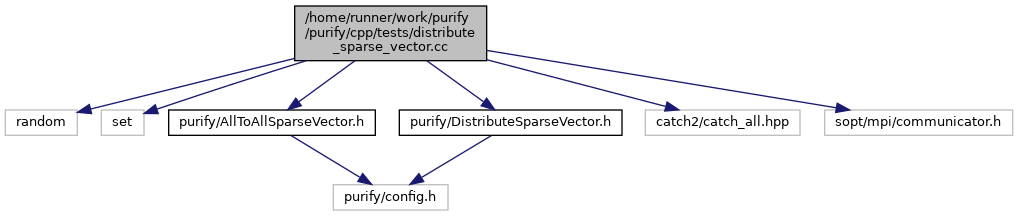

+ Include dependency graph for distribute_sparse_vector.cc:

Go to the source code of this file.

Functions

 TEST_CASE ("Distribe Sparse Vector")

 TEST_CASE ("All to one Sparse Vector")

 TEST_CASE ("All to All Sparse Vector")

 TEST_CASE ("recv_sizes")

 TEST_CASE ("recv_sizes 64 bit")


Function Documentation

◆ TEST_CASE() [1/5]

TEST_CASE ( "All to All Sparse Vector"  )

Definition at line 79 of file distribute_sparse_vector.cc.

79  {
80  auto const world = sopt::mpi::Communicator::World();
81  CAPTURE(world.rank());
82  Vector<t_int> const grid = world.broadcast<Vector<t_int>>(
83  Vector<t_int>::Random(std::max(world.size() * 2, world.size() + 2)));
84  SECTION("Check throw when index is not ordered by node") {
85  std::vector<t_int> const indices = {
86  static_cast<t_int>(grid.size() * (world.rank() + 1) + world.size() + 1),
87  static_cast<t_int>(world.rank())};
88  CHECK_THROWS(
89  AllToAllSparseVector<t_int>(indices, grid.size(), grid.size() * world.rank(), world));
90  }
91  std::vector<t_int> const indices = {
92  static_cast<t_int>(world.rank()),
93  static_cast<t_int>(grid.size() * world.rank() + world.size() + 1)};
94  AllToAllSparseVector<t_int> distributor(indices, grid.size(), grid.size() * world.rank(), world);
95
96  SECTION("Scatter") {
97  Vector<t_int> output;
98  distributor.recv_grid(grid, output);
99  REQUIRE(output.size() == 2);
100  CHECK(output(0) == grid(world.rank()));
101  CHECK(output(1) == grid(world.size() + 1));
102  }
103
104  SECTION("Gather") {
105  Vector<t_int> local = Vector<t_int>::Ones(2);
106  Vector<t_int> output;
107  distributor.send_grid(local, output);
108  CHECK(output.size() == grid.size());
109  CAPTURE(world.rank());
110  CAPTURE(output);
111  if (world.is_root()) {
112  for (decltype(world.size()) i(0); i < world.size(); ++i) CHECK(output(i) == 1);
113  CHECK(output(world.size()) == 0);
114  CHECK(output(world.size() + 1) == 1);
115  CHECK(grid.size() - 2 >= world.size());
116  CHECK((output.tail(grid.size() - world.size() - 2).array() == 0).all());
117  } else {
118  for (t_int i = 0; i < output.size(); i++) {
119  if (i != world.size() + 1)
120  CHECK(output(i) == 0);
121  else
122  CHECK(output(i) == 1);
123  }
124  }
125  }
126 }
CHECK
#define CHECK(CONDITION, ERROR)
Definition: casa.cc:6
CHECK_THROWS
#define CHECK_THROWS(STATEMENT, ERROR)
Definition: casa.cc:8

References CHECK, and CHECK_THROWS.

◆ TEST_CASE() [2/5]

TEST_CASE ( "All to one Sparse Vector"  )

Definition at line 43 of file distribute_sparse_vector.cc.

43  {
44  auto const world = sopt::mpi::Communicator::World();
45  Vector<t_int> const grid = world.broadcast<Vector<t_int>>(
46  Vector<t_int>::Random(std::max(world.size() * 2, world.size() + 2)));
47  std::vector<t_int> const indices = {static_cast<t_int>(world.rank()),
48  static_cast<t_int>(world.size() + 1)};
49  AllToAllSparseVector<t_int> distributor(indices, grid.size(), grid.size() * world.rank(), world);
50
51  SECTION("Scatter") {
52  Vector<t_int> output;
53  distributor.recv_grid(grid, output);
54  CAPTURE(world.rank());
55  REQUIRE(output.size() == 2);
56  CHECK(output(0) == grid(world.rank()));
57  CHECK(output(1) == grid(world.size() + 1));
58  }
59
60  SECTION("Gather") {
61  Vector<t_int> local(2);
62  local << world.rank(), world.size() + world.rank();
63  Vector<t_int> output;
64  distributor.send_grid(local, output);
65  CHECK(output.size() == grid.size());
66  if (world.is_root()) {
67  for (decltype(world.size()) i(0); i < world.size(); ++i) CHECK(output(i) == i);
68  CHECK(output(world.size()) == 0);
69  CHECK(output(world.size() + 1) ==
70  world.size() * world.size() + (world.size() * (world.size() - 1)) / 2);
71  CHECK(grid.size() - 2 >= world.size());
72  CHECK((output.tail(grid.size() - world.size() - 2).array() == 0).all());
73  } else {
74  for (t_int i = 0; i < output.size(); i++) CHECK(output(i) == 0);
75  }
76  }
77 }

References CHECK.

◆ TEST_CASE() [3/5]

TEST_CASE ( "Distribe Sparse Vector"  )

Definition at line 9 of file distribute_sparse_vector.cc.

9  {
10  auto const world = sopt::mpi::Communicator::World();
11  Vector<t_int> const grid = world.broadcast<Vector<t_int>>(
12  Vector<t_int>::Random(std::max(world.size() * 2, world.size() + 2)));
13  std::vector<t_int> const indices = {static_cast<t_int>(world.rank()),
14  static_cast<t_int>(world.size() + 1)};
15  DistributeSparseVector distributor(indices, grid.size(), world);
16
17  SECTION("Scatter") {
18  Vector<t_int> output;
19  distributor.scatter(grid, output);
20  REQUIRE(output.size() == 2);
21  CHECK(output(0) == grid(world.rank()));
22  CHECK(output(1) == grid(world.size() + 1));
23  }
24
25  SECTION("Gather") {
26  Vector<t_int> local(2);
27  local << world.rank(), world.size() + world.rank();
28  Vector<t_int> output;
29  if (world.is_root()) {
30  distributor.gather(local, output);
31  CHECK(output.size() == grid.size());
32  for (decltype(world.size()) i(0); i < world.size(); ++i) CHECK(output(i) == i);
33  CHECK(output(world.size()) == 0);
34  CHECK(output(world.size() + 1) ==
35  world.size() * world.size() + (world.size() * (world.size() - 1)) / 2);
36  CHECK(grid.size() - 2 >= world.size());
37  CHECK((output.tail(grid.size() - world.size() - 2).array() == 0).all());
38  } else {
39  distributor.gather(local);
40  }
41  }
42 }

References CHECK.

◆ TEST_CASE() [4/5]

TEST_CASE ( "recv_sizes 64 bit"  )

Definition at line 158 of file distribute_sparse_vector.cc.

158  {
159  for (std::int64_t nodes : {1, 2, 5, 10, 20, 50, 100, 1000}) {
160  for (std::int64_t imsize : {128, 1024, 2048, 4096, 8192, 16384, 32768, 65536, 131072}) {
161  const std::int64_t N = imsize * imsize;
162  CAPTURE(imsize);
163  // First create an instance of an engine.
164  std::random_device rnd_device;
165  // Specify the engine and distribution.
166  std::mt19937_64 mersenne_engine(rnd_device()); // Generates random integers
167  std::uniform_int_distribution<std::int64_t> dist(
168  0, static_cast<std::int64_t>(nodes) * static_cast<std::int64_t>(N));
169  auto gen = [&dist, &mersenne_engine]() -> std::int64_t { return dist(mersenne_engine); };
170  std::vector<std::int64_t> local_indices(10);
171  std::generate(local_indices.begin(), local_indices.end(), gen);
172  std::sort(local_indices.begin(), local_indices.end(),
173  [](std::int64_t a, std::int64_t b) { return (a < b); });
174  CAPTURE(local_indices);
175  CAPTURE(nodes);
176  std::vector<t_int> recv = all_to_all_recv_sizes<std::int64_t>(local_indices, nodes, N);
177  for (const auto& a : recv) CHECK(a >= 0);
178  CHECK(local_indices.size() == std::accumulate(recv.begin(), recv.end(), 0));
179  }
180  }
181 }

References CHECK.

◆ TEST_CASE() [5/5]

TEST_CASE ( "recv_sizes"  )

Definition at line 128 of file distribute_sparse_vector.cc.

128  {
129  for (t_int nodes : {1, 2, 5, 10, 20, 50, 100, 1000}) {
130  for (t_int imsize : {128, 1024, 2048, 4096, 8192, 16384, 32768}) {
131  const std::int32_t N = imsize * imsize;
132  CAPTURE(imsize);
133  CAPTURE(N);
134  // First create an instance of an engine.
135  std::random_device rnd_device;
136  // Specify the engine and distribution.
137  std::mt19937_64 mersenne_engine(rnd_device()); // Generates random integers
138  std::uniform_int_distribution<t_int> dist(0, nodes * N);
139  auto gen = [&dist, &mersenne_engine]() { return dist(mersenne_engine); };
140  std::vector<t_int> local_indices(10);
141  std::generate(local_indices.begin(), local_indices.end(), gen);
142  std::sort(local_indices.begin(), local_indices.end(),
143  [](t_int a, t_int b) { return (a < b); });
144  CAPTURE(local_indices);
145  CAPTURE(nodes);
146  if (static_cast<std::int64_t>(N) * static_cast<std::int64_t>(nodes) >
147  std::numeric_limits<t_int>::max())
148  CHECK_THROWS(all_to_all_recv_sizes<t_int>(local_indices, nodes, N));
149  else {
150  std::vector<t_int> recv = all_to_all_recv_sizes<t_int>(local_indices, nodes, N);
151  for (const auto& a : recv) CHECK(a >= 0);
152
153  CHECK(local_indices.size() == std::accumulate(recv.begin(), recv.end(), 0));
154  }
155  }
156  }
157 }

References CHECK, and CHECK_THROWS.
