padmm_random_coverage.cc File Reference

#include <array>
#include <memory>
#include <random>
#include <boost/math/special_functions/erf.hpp>
#include "purify/directories.h"
#include "purify/logging.h"
#include "purify/operators.h"
#include "purify/wproj_operators.h"
#include <sopt/credible_region.h>
#include <sopt/imaging_padmm.h>
#include <sopt/power_method.h>
#include <sopt/relative_variation.h>
#include <sopt/utilities.h>
#include <sopt/wavelets.h>
#include <sopt/wavelets/sara.h>
#include "purify/types.h"
#include "purify/cimg.h"
#include "purify/pfitsio.h"
#include "purify/utilities.h"

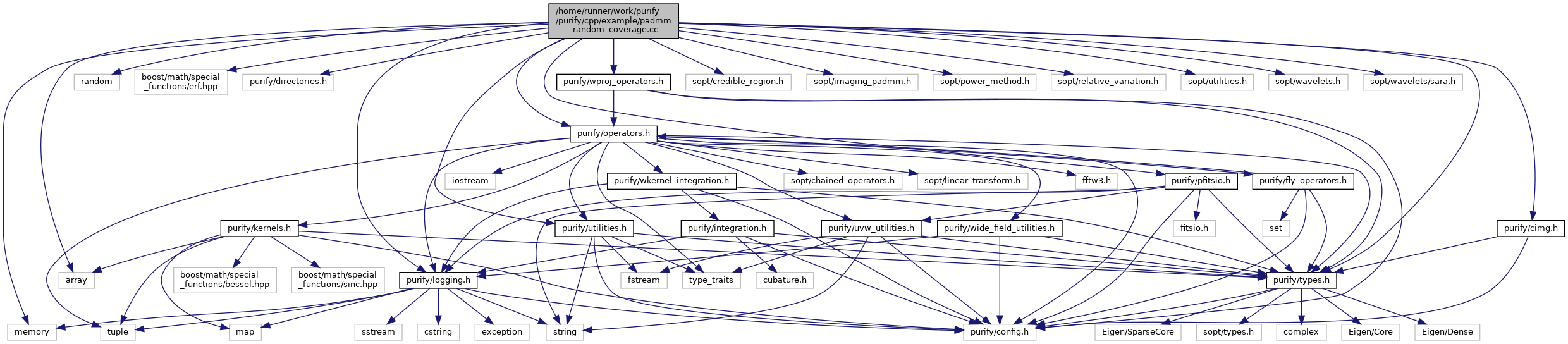

Include dependency graph for padmm_random_coverage.cc:

Go to the source code of this file.

Functions
void	padmm (const std::string &name, const Image< t_complex > &M31, const std::string &kernel, const t_int J, const utilities::vis_params &uv_data, const t_real sigma, const std::tuple< bool, t_real > &w_term)
int	main (int, char **)

Function Documentation

main()

int main	(	int	,
		char **
	)

Definition at line 134 of file padmm_random_coverage.cc.

                       {
  // sopt::logging::set_level("debug");
  // purify::logging::set_level("debug");
  const std::string &name = "M31";
  const t_real FoV = 15;     // deg
  const t_real max_w = 15.;  // lambda
  const t_real snr = 30;
  const bool w_term = false;
  const std::string kernel = "kb";
  std::string const fitsfile = image_filename(name + ".fits");
  auto M31 = pfitsio::read2d(fitsfile);
  const t_real cellsize = FoV / M31.cols() * 60. * 60.;
  std::string const inputfile = output_filename(name + "_" + "input.fits");

  t_real const max = M31.array().abs().maxCoeff();
  M31 = M31 * 1. / max;
  pfitsio::write2d(M31.real(), inputfile);

  t_int const number_of_pxiels = M31.size();
  t_int const number_of_vis = std::floor(number_of_pxiels * 2);
  // Generating random uv(w) coverage
  t_real const sigma_m = constant::pi / 3;
  auto uv_data = utilities::random_sample_density(number_of_vis, 0, sigma_m, max_w);
  uv_data.units = utilities::vis_units::radians;
  PURIFY_MEDIUM_LOG("Number of measurements / number of pixels: {}",
                    uv_data.u.size() * 1. / number_of_pxiels);

#ifndef PURIFY_GPU
  auto const sky_measurements = std::get<2>(sopt::algorithm::normalise_operator<Vector<t_complex>>(
      measurementoperator::init_degrid_operator_2d<Vector<t_complex>>(
          uv_data, M31.rows(), M31.cols(), cellsize, cellsize, 2,
          kernels::kernel_from_string.at("kb"), 8, 30, true, 1e-6, 1e-6, dde_type::wkernel_radial),
      1000, 0.0001, Vector<t_complex>::Random(M31.size())));
#else
  auto const sky_measurements = std::get<2>(sopt::algorithm::normalise_operator<Vector<t_complex>>(
      gpu::measurementoperator::init_degrid_operator_2d(
          uv_data, M31.rows(), M31.cols(), cellsize, cellsize, 2,
          kernels::kernel_from_string.at("kb"), 8, 8, w_term),
      1000, 0.0001, Vector<t_complex>::Random(M31.size())));

#endif
  uv_data.vis = (*sky_measurements) * Image<t_complex>::Map(M31.data(), M31.size(), 1);
  Vector<t_complex> const y0 = uv_data.vis;
  // working out value of signal given SNR of 30
  t_real const sigma = utilities::SNR_to_standard_deviation(y0, snr);

  std::cout << std::setprecision(13) << sigma << std::endl;
  // adding noise to visibilities
  uv_data.vis = utilities::add_noise(y0, 0., sigma);
  padmm(name + "30", M31, kernel, 4, uv_data, sigma, std::make_tuple(w_term, cellsize));
  return 0;
}

References purify::utilities::add_noise(), purify::image_filename(), purify::measurementoperator::init_degrid_operator_2d(), purify::kernels::kernel_from_string, purify::output_filename(), padmm(), purify::constant::pi, PURIFY_MEDIUM_LOG, purify::utilities::radians, purify::utilities::random_sample_density(), purify::pfitsio::read2d(), purify::utilities::SNR_to_standard_deviation(), purify::wkernel_radial, and purify::pfitsio::write2d().

padmm()

void padmm	(	const std::string &	name,
		const Image< t_complex > &	M31,
		const std::string &	kernel,
		const t_int	J,
		const utilities::vis_params &	uv_data,
		const t_real	sigma,
		const std::tuple< bool, t_real > &	w_term
	)

Definition at line 25 of file padmm_random_coverage.cc.

                                                 {
  std::string const outfile = output_filename(name + "_" + kernel + ".tiff");
  std::string const outfile_fits = output_filename(name + "_" + kernel + "_solution.fits");
  std::string const residual_fits = output_filename(name + "_" + kernel + "_residual.fits");
  std::string const dirty_image = output_filename(name + "_" + kernel + "_dirty.tiff");
  std::string const dirty_image_fits = output_filename(name + "_" + kernel + "_dirty.fits");

  t_real const over_sample = 2;
  t_uint const imsizey = M31.rows();
  t_uint const imsizex = M31.cols();
  utilities::write_visibility(uv_data, output_filename("input_data.vis"));
#ifndef PURIFY_GPU
  auto const measurements_transform =
      std::get<2>(sopt::algorithm::normalise_operator<Vector<t_complex>>(
          measurementoperator::init_degrid_operator_2d<Vector<t_complex>>(
              uv_data, imsizey, imsizex, std::get<1>(w_term), std::get<1>(w_term), over_sample,
              kernels::kernel_from_string.at(kernel), J, 30, true, 1e-6, 1e-6,
              dde_type::wkernel_radial),
          1000, 1e-4, Vector<t_complex>::Random(imsizex * imsizey)));
#else
  af::setDevice(0);
  auto const measurements_transform =
      std::get<2>(sopt::algorithm::normalise_operator<Vector<t_complex>>(
          gpu::measurementoperator::init_degrid_operator_2d(
              uv_data, imsizey, imsizex, std::get<1>(w_term), std::get<1>(w_term), over_sample,
              kernels::kernel_from_string.at(kernel), J, J, std::get<0>(w_term)),
          1000, 1e-4, Vector<t_complex>::Random(imsizex * imsizey)));
#endif
  sopt::wavelets::SARA const sara{
      std::make_tuple("Dirac", 3u), std::make_tuple("DB1", 3u), std::make_tuple("DB2", 3u),
      std::make_tuple("DB3", 3u),   std::make_tuple("DB4", 3u), std::make_tuple("DB5", 3u),
      std::make_tuple("DB6", 3u),   std::make_tuple("DB7", 3u), std::make_tuple("DB8", 3u)};

  auto const Psi = sopt::linear_transform<t_complex>(sara, imsizey, imsizex);
  Vector<> dimage = (measurements_transform->adjoint() * uv_data.vis).real();
  assert(dimage.size() == M31.size());
  Vector<t_complex> initial_estimate = Vector<t_complex>::Zero(dimage.size());
  sopt::utilities::write_tiff(Image<t_real>::Map(dimage.data(), imsizey, imsizex), dirty_image);
  pfitsio::write2d(Image<t_real>::Map(dimage.data(), imsizey, imsizex), dirty_image_fits);

  auto const epsilon = utilities::calculate_l2_radius(uv_data.vis.size(), sigma);
  PURIFY_HIGH_LOG("Using epsilon of {}", epsilon);
#ifdef PURIFY_CImg
  auto const canvas =
      std::make_shared<CDisplay>(cimg::make_display(Vector<t_real>::Zero(1024 * 512), 1024, 512));
  canvas->resize(true);
  auto const show_image = [&, measurements_transform](const Vector<t_complex> &x) -> bool {
    if (!canvas->is_closed()) {
      const Vector<t_complex> res =
          (measurements_transform->adjoint() * (uv_data.vis - (*measurements_transform * x)));
      const auto img1 = cimg::make_image(x.real().eval(), imsizey, imsizex)
                            .get_normalize(0, 1)
                            .get_resize(512, 512);
      const auto img2 = cimg::make_image(res.real().eval(), imsizey, imsizex)
                            .get_normalize(0, 1)
                            .get_resize(512, 512);
      const auto results = CImageList<t_real>(img1, img2);
      canvas->display(results);
      canvas->resize(true);
    }
    return true;
  };
#endif
  auto const padmm =
      sopt::algorithm::ImagingProximalADMM<t_complex>(uv_data.vis)
          .itermax(500)
          .regulariser_strength(
              (Psi.adjoint() * (measurements_transform->adjoint() * uv_data.vis).eval())
                  .cwiseAbs()
                  .maxCoeff() *
              1e-3)
          .relative_variation(1e-3)
          .l2ball_proximal_epsilon(epsilon)
          .tight_frame(false)
          .l1_proximal_tolerance(1e-2)
          .l1_proximal_nu(1.)
          .l1_proximal_itermax(50)
          .l1_proximal_positivity_constraint(true)
          .l1_proximal_real_constraint(true)
          .residual_convergence(epsilon)
          .lagrange_update_scale(0.9)
#ifdef PURIFY_CImg
          .is_converged(show_image)
#endif
          .Psi(Psi)
          .Phi(*measurements_transform);

  auto const diagnostic = padmm();
  assert(diagnostic.x.size() == M31.size());
  Image<t_complex> image = Image<t_complex>::Map(diagnostic.x.data(), imsizey, imsizex);
  pfitsio::write2d(image.real(), outfile_fits);
  Vector<t_complex> residuals = measurements_transform->adjoint() *
                                (uv_data.vis - ((*measurements_transform) * diagnostic.x));
  Image<t_complex> residual_image = Image<t_complex>::Map(residuals.data(), imsizey, imsizex);
  pfitsio::write2d(residual_image.real(), residual_fits);
#ifdef PURIFY_CImg
  const auto results = CImageList<t_real>(
      cimg::make_image(diagnostic.x.real().eval(), imsizey, imsizex).get_resize(512, 512),
      cimg::make_image(residuals.real().eval(), imsizey, imsizex).get_resize(512, 512));
  canvas->display(results);
  cimg::make_image(residuals.real().eval(), imsizey, imsizex)
      .histogram(256)
      .display_graph("Residual Histogram", 2);
  while (!canvas->is_closed()) canvas->wait();
#endif
}

References purify::utilities::calculate_l2_radius(), purify::measurementoperator::init_degrid_operator_2d(), purify::kernels::kernel_from_string, purify::output_filename(), padmm(), PURIFY_HIGH_LOG, purify::utilities::vis_params::vis, purify::wkernel_radial, purify::pfitsio::write2d(), and purify::utilities::write_visibility().

Referenced by main(), padmm(), purify::factory::padmm_factory(), padmm_factory(), and TEST_CASE().
