uq_main.cc File Reference

#include <iostream>
#include <stdlib.h>
#include <string>
#include <tuple>
#include <vector>
#include "purify/measurement_operator_factory.h"
#include "purify/pfitsio.h"
#include "purify/setup_utils.h"
#include "purify/utilities.h"
#include "purify/yaml-parser.h"
#include "yaml-cpp/yaml.h"
#include "sopt/differentiable_func.h"
#include "sopt/non_differentiable_func.h"
#include "sopt/objective_functions.h"
#include <sopt/l1_non_diff_function.h>
#include <sopt/l2_differentiable_func.h>
#include <sopt/real_indicator.h>

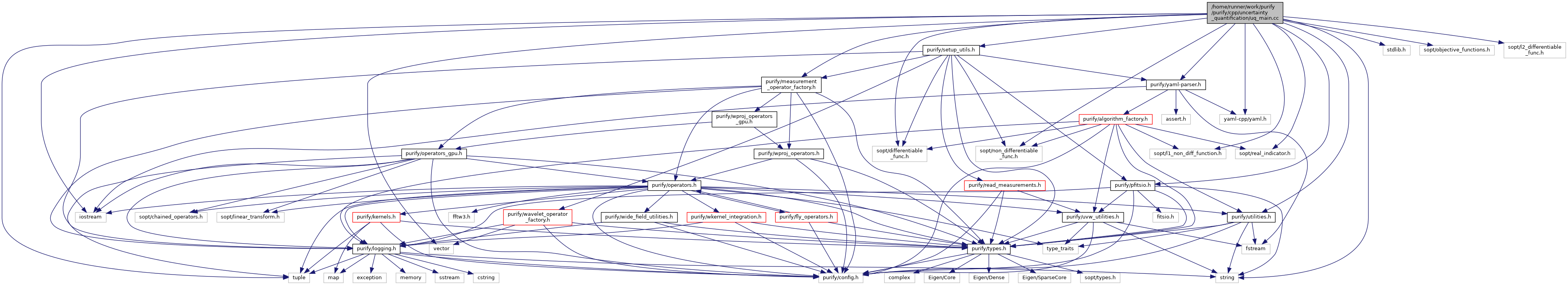

Include dependency graph for uq_main.cc:

Go to the source code of this file.

Typedefs
using	VectorC = sopt::Vector< std::complex< double > >

Functions
int	main (int argc, char **argv)

Typedef Documentation

VectorC

using VectorC = sopt::Vector<std::complex<double> >

Definition at line 19 of file uq_main.cc.

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 21 of file uq_main.cc.

                                {
  if (argc != 4) {
    std::cout << "purify_UQ should be run using three additional arguments." << std::endl;
    std::cout << "purify_UQ <config_path> <reference_image_path> <surrogate_image_path>"
              << std::endl;
    std::cout << "<config_path>: path to a .yaml config file specifying details of measurement "
                 "operator, wavelet operator, observations, and cost functions."
              << std::endl;
    std::cout << "<reference_image_path>: path to image file (.fits) which was output from running "
                 "purify on observed data."
              << std::endl;
    std::cout << "<surrogate_image_path>: path to modified image file (.fits) for feature analysis."
              << std::endl;
    std::cout << std::endl;
    std::cout
        << "For more information about the contents of the config file please consult the README."
        << std::endl;
    return 1;
  }

  // Load and parse the config for parameters
  const std::string config_path = argv[1];
  const YAML::Node UQ_config = YAML::LoadFile(config_path);

  // Load the Reference and Surrogate images
  const std::string ref_image_path = argv[2];
  const std::string surrogate_image_path = argv[3];
  const auto reference_image = purify::pfitsio::read2d(ref_image_path);
  const VectorC reference_vector = VectorC::Map(reference_image.data(), reference_image.size());
  const auto surrogate_image = purify::pfitsio::read2d(surrogate_image_path);
  const VectorC surrogate_vector = VectorC::Map(surrogate_image.data(), surrogate_image.size());

  const uint imsize_x = reference_image.cols();
  const uint imsize_y = reference_image.rows();

  std::unique_ptr<DifferentiableFunc<t_complex>> f;
  std::unique_ptr<NonDifferentiableFunc<t_complex>> g;

  // Prepare operators and data using purify config
  // If no purify config use basic version for now based on algo_factory test images
  purify::utilities::vis_params measurement_data;
  double regulariser_strength = 0;
  std::shared_ptr<sopt::LinearTransform<VectorC>> measurement_operator;
  std::shared_ptr<const sopt::LinearTransform<VectorC>> wavelet_operator;
  std::vector<std::tuple<std::string, t_uint>> const sara{
      std::make_tuple("Dirac", 3u), std::make_tuple("DB1", 3u), std::make_tuple("DB2", 3u),
      std::make_tuple("DB3", 3u),   std::make_tuple("DB4", 3u), std::make_tuple("DB5", 3u),
      std::make_tuple("DB6", 3u),   std::make_tuple("DB7", 3u), std::make_tuple("DB8", 3u)};
  if (UQ_config["purify_config_file"]) {
    YamlParser purify_config = YamlParser(UQ_config["purify_config_file"].as<std::string>());

    const auto [mop_algo, wop_algo, using_mpi] = selectOperators(purify_config);
    auto [uv_data, sigma, measurement_op_eigen_vector, image_index, w_stacks] =
        getInputData(purify_config, mop_algo, wop_algo, using_mpi);

    auto transform =
        createMeasurementOperator(purify_config, mop_algo, wop_algo, using_mpi, image_index,
                                  w_stacks, uv_data, measurement_op_eigen_vector);

    const waveletInfo wavelets = createWaveletOperator(purify_config, wop_algo);

    t_real const flux_scale = 1.;
    uv_data.vis = uv_data.vis.array() * uv_data.weights.array() / flux_scale;

    measurement_data = uv_data;
    measurement_operator = transform;
    wavelet_operator = wavelets.transform;

    // setup f and g based on config file
    setupCostFunctions(purify_config, f, g, sigma, *measurement_operator);

    regulariser_strength = purify_config.regularisation_parameter();
  } else {
    const std::string measurements_path = UQ_config["measurements_path"].as<std::string>();
    // Load the images and measurements
    measurement_data = purify::utilities::read_visibility(measurements_path, false);

    // This is the measurement operator used in the test but this should probably be selectable
    measurement_operator = purify::factory::measurement_operator_factory<sopt::Vector<t_complex>>(
        purify::factory::distributed_measurement_operator::serial, measurement_data, imsize_y,
        imsize_x, 1, 1, 2, kernels::kernel_from_string.at("kb"), 4, 4);

    wavelet_operator = purify::factory::wavelet_operator_factory<Vector<t_complex>>(
        factory::distributed_wavelet_operator::serial, sara, imsize_y, imsize_x);

    // default cost function
    f = std::make_unique<sopt::L2DifferentiableFunc<t_complex>>(
        1, *measurement_operator);  // what would a default sigma look like??
    g = std::make_unique<sopt::algorithm::L1GProximal<t_complex>>();

    try {
      regulariser_strength = UQ_config["regulariser_strength"].as<double>();
    } catch (...) {
      std::cout
          << "Regulariser strength not provided in UQ config, and no purify config was provided.\n";
      std::cout << "Regulariser strength will be 0 by default." << std::endl;
    }
  }

  // Set up confidence and objective function params
  double confidence;
  double alpha;
  if ((UQ_config["confidence_interval"]) && (UQ_config["alpha"])) {
    std::cout << "Config should only contain one of 'confidence_interval' or 'alpha'." << std::endl;
    return 1;
  }
  if (UQ_config["confidence_interval"]) {
    confidence = UQ_config["confidence_interval"].as<double>();
    alpha = 1 - confidence;
  } else if (UQ_config["alpha"]) {
    alpha = UQ_config["alpha"].as<double>();
    confidence = 1 - alpha;
  } else {
    std::cout << "Config file must contain either 'confidence_interval' or 'alpha' as a parameter."
              << std::endl;
    return 1;
  }

  if ((imsize_x != surrogate_image.cols()) || (imsize_y != surrogate_image.rows())) {
    std::cout << "Surrogate and reference images have different dimensions. Aborting." << std::endl;
    return 2;
  }

  if (((*measurement_operator) * reference_vector).size() != measurement_data.vis.size()) {
    std::cout << "Image size is not compatible with the measurement operator and data provided."
              << std::endl;
    return 3;
  }

  // Calculate the posterior function for the reference image
  // posterior = likelihood + prior
  // Likelihood = |y - Phi(x)|^2 / sigma^2  (L2 norm)
  // Prior = Sum(Psi^t * |x_i|) * regulariser_strength  (L1 norm)
  auto Posterior = [&measurement_data, measurement_operator, wavelet_operator, regulariser_strength,
                    &f, &g](const VectorC &image) {
    {
      const auto residuals = (*measurement_operator * image) - measurement_data.vis;
      auto A = f->function(image, measurement_data.vis, (*measurement_operator));
      auto B = g->function(image);
      return A + regulariser_strength * B;
    }
  };

  const double reference_posterior = Posterior(reference_vector);
  const double surrogate_posterior = Posterior(surrogate_vector);

  // Threshold for surrogate image posterior to be within confidence limit
  const double N = imsize_x * imsize_y;
  const double tau = std::sqrt(16 * std::log(3 / alpha));
  const double threshold = reference_posterior + tau * std::sqrt(N) + N;

  std::cout << "Uncertainty Quantification." << std::endl;
  std::cout << "Reference Log Posterior = " << reference_posterior << std::endl;
  std::cout << "Confidence interval = " << confidence << std::endl;
  std::cout << "Log Posterior threshold = " << threshold << std::endl;
  std::cout << "Surrogate Log Posterior = " << surrogate_posterior << std::endl;
  std::cout << "Surrogate image is "
            << ((surrogate_posterior <= threshold) ? "within the credible interval."
                                                   : "excluded by the credible interval.")
            << std::endl;

  return 0;
}

References createMeasurementOperator(), createWaveletOperator(), getInputData(), purify::kernels::kernel_from_string, purify::pfitsio::read2d(), purify::utilities::read_visibility(), selectOperators(), purify::factory::serial, setupCostFunctions(), waveletInfo::transform, and purify::utilities::vis_params::vis.
