wavelets.cc File Reference

#include <sstream>
#include <benchmark/benchmark.h>
#include "sopt/wavelets/wavelets.h"

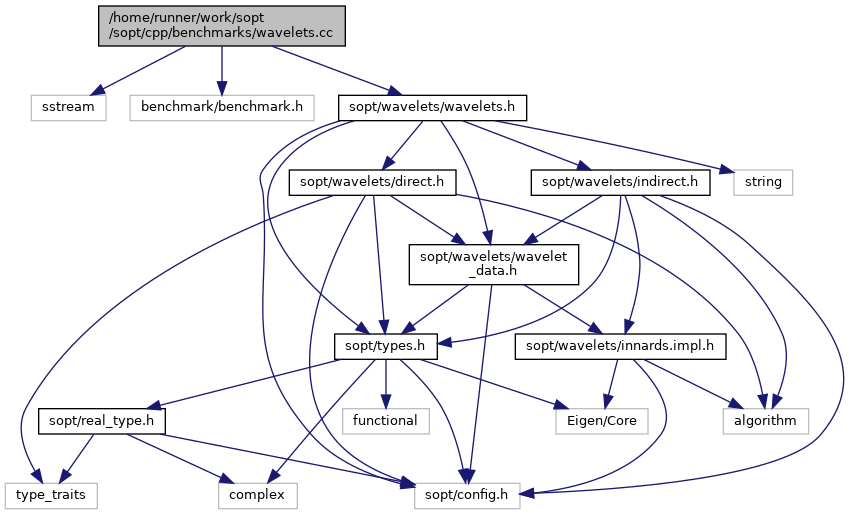

Include dependency graph for wavelets.cc:

Go to the source code of this file.

Functions
unsigned	get_size (unsigned requested, unsigned levels)
std::string	get_name (unsigned db)
template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>
void	direct_matrix (benchmark::State &state)
template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>
void	indirect_matrix (benchmark::State &state)
template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>
void	direct_vector (benchmark::State &state)
template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>
void	indirect_vector (benchmark::State &state)
	BENCHMARK_TEMPLATE (direct_matrix, sopt::t_complex, 1, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_matrix, sopt::t_real, 1, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_matrix, sopt::t_complex, 10, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_vector, sopt::t_complex, 1, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_vector, sopt::t_complex, 10, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_vector, sopt::t_complex, 1, 2) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (direct_vector, sopt::t_real, 1, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_matrix, sopt::t_complex, 1, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_matrix, sopt::t_real, 1, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_matrix, sopt::t_complex, 10, 1) -> RangePair(n, N, n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_vector, sopt::t_complex, 1, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_vector, sopt::t_complex, 10, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_vector, sopt::t_complex, 1, 2) -> Range(n, N) ->UseRealTime()
	BENCHMARK_TEMPLATE (indirect_vector, sopt::t_real, 1, 1) -> Range(n, N) ->UseRealTime()
	BENCHMARK_MAIN ()

Variables
constexpr auto	n = 64
constexpr auto	N = 256 * 3

Function Documentation

BENCHMARK_MAIN()

BENCHMARK_MAIN

(

)

BENCHMARK_TEMPLATE() [1/14]

BENCHMARK_TEMPLATE	(	direct_matrix	,
		sopt::t_complex	,
		1	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [2/14]

BENCHMARK_TEMPLATE	(	direct_matrix	,
		sopt::t_complex	,
		10	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [3/14]

BENCHMARK_TEMPLATE	(	direct_matrix	,
		sopt::t_real	,
		1	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [4/14]

BENCHMARK_TEMPLATE	(	direct_vector	,
		sopt::t_complex	,
		1	,
		1
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [5/14]

BENCHMARK_TEMPLATE	(	direct_vector	,
		sopt::t_complex	,
		1	,
		2
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [6/14]

BENCHMARK_TEMPLATE	(	direct_vector	,
		sopt::t_complex	,
		10	,
		1
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [7/14]

BENCHMARK_TEMPLATE	(	direct_vector	,
		sopt::t_real	,
		1	,
		1
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [8/14]

BENCHMARK_TEMPLATE	(	indirect_matrix	,
		sopt::t_complex	,
		1	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [9/14]

BENCHMARK_TEMPLATE	(	indirect_matrix	,
		sopt::t_complex	,
		10	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [10/14]

BENCHMARK_TEMPLATE	(	indirect_matrix	,
		sopt::t_real	,
		1	,
		1
	)		-> RangePair(n, N, n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [11/14]

BENCHMARK_TEMPLATE	(	indirect_vector	,
		sopt::t_complex	,
		1	,
		1
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [12/14]

BENCHMARK_TEMPLATE	(	indirect_vector	,
		sopt::t_complex	,
		1	,
		2
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [13/14]

BENCHMARK_TEMPLATE	(	indirect_vector	,
		sopt::t_complex	,
		10	,
		1
	)		-> Range(n, N) ->UseRealTime()

BENCHMARK_TEMPLATE() [14/14]

BENCHMARK_TEMPLATE	(	indirect_vector	,
		sopt::t_real	,
		1	,
		1
	)		-> Range(n, N) ->UseRealTime()

direct_matrix()

template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>

void direct_matrix

(

benchmark::State &

state

)

Definition at line 16 of file wavelets.cc.

                                          {
  auto const Nx = get_size(state.range_x(), LEVEL);
  auto const Ny = get_size(state.range_y(), LEVEL);
  auto const input = sopt::Image<TYPE>::Random(Nx, Ny).eval();
  auto output = sopt::Image<TYPE>::Zero(Nx, Ny).eval();
  auto const wavelet = sopt::wavelets::factory(get_name(DB), LEVEL);
  while (state.KeepRunning()) wavelet.direct(output, input);
  state.SetBytesProcessed(int64_t(state.iterations()) * int64_t(Nx) * int64_t(Ny) * sizeof(TYPE));
}

References sopt::wavelets::factory(), get_name(), and get_size().

direct_vector()

template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>

void direct_vector

(

benchmark::State &

state

)

Definition at line 38 of file wavelets.cc.

                                          {
  auto const Nx = get_size(state.range_x(), LEVEL);
  auto const input = sopt::Array<TYPE>::Random(Nx).eval();
  auto output = sopt::Array<TYPE>::Zero(Nx).eval();
  auto const wavelet = sopt::wavelets::factory(get_name(DB), LEVEL);
  while (state.KeepRunning()) wavelet.direct(output, input);
  state.SetBytesProcessed(int64_t(state.iterations()) * int64_t(Nx) * sizeof(TYPE));
}

References sopt::wavelets::factory(), get_name(), and get_size().

get_name()

std::string get_name

(

unsigned

db

)

Definition at line 9 of file wavelets.cc.

                                {
  std::ostringstream sstr;
  sstr << "DB" << db;
  return sstr.str();
}

Referenced by direct_matrix(), direct_vector(), indirect_matrix(), and indirect_vector().

get_size()

unsigned get_size	(	unsigned	requested,
		unsigned	levels
	)

Definition at line 5 of file wavelets.cc.

                                                       {
  auto const N = (1u << levels);
  return requested % N == 0 ? requested : requested + N - requested % N;
}

References N.

Referenced by direct_matrix(), direct_vector(), indirect_matrix(), and indirect_vector().

indirect_matrix()

template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>

void indirect_matrix

(

benchmark::State &

state

)

Definition at line 27 of file wavelets.cc.

                                            {
  auto const Nx = get_size(state.range_x(), LEVEL);
  auto const Ny = get_size(state.range_y(), LEVEL);
  auto const input = sopt::Image<TYPE>::Random(Nx, Ny).eval();
  auto output = sopt::Image<TYPE>::Zero(Nx, Ny).eval();
  auto const wavelet = sopt::wavelets::factory(get_name(DB), LEVEL);
  while (state.KeepRunning()) wavelet.indirect(input, output);
  state.SetBytesProcessed(int64_t(state.iterations()) * int64_t(Nx) * int64_t(Ny) * sizeof(TYPE));
}

References sopt::wavelets::factory(), get_name(), and get_size().

indirect_vector()

template<typename TYPE , unsigned DB = 1, unsigned LEVEL = 1>

void indirect_vector

(

benchmark::State &

state

)

Definition at line 47 of file wavelets.cc.

                                            {
  auto const Nx = get_size(state.range_x(), LEVEL);
  auto const input = sopt::Array<TYPE>::Random(Nx).eval();
  auto output = sopt::Array<TYPE>::Zero(Nx).eval();
  auto const wavelet = sopt::wavelets::factory(get_name(DB), LEVEL);
  while (state.KeepRunning()) wavelet.indirect(input, output);
  state.SetBytesProcessed(int64_t(state.iterations()) * int64_t(Nx) * sizeof(TYPE));
}

References sopt::wavelets::factory(), get_name(), and get_size().

Variable Documentation

n

constexpr auto n = 64

constexpr

Definition at line 56 of file wavelets.cc.

Referenced by sopt::wavelets::daubechies_data(), sopt::LinearTransform< VECTOR >::set_norm(), and TEST_CASE().

N

constexpr auto N = 256 * 3

constexpr

Definition at line 57 of file wavelets.cc.

Referenced by sopt::credible_region::compute_energy_upper_bound(), concatenated_permutations(), sopt::wavelets::direct_transform(), function_cg(), function_l1p(), get_size(), sopt::utilities::get_wavelet_high_pass_1d(), sopt::utilities::get_wavelet_levels_1d(), sopt::wavelets::indirect_transform(), main(), matrix_cg(), and TEST_CASE().
