DifferentiableFunc< SCALAR > Class Template Reference

#include <differentiable_func.h>

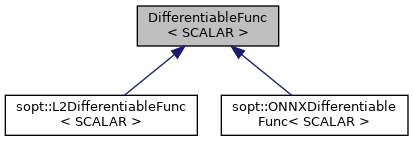

Inheritance diagram for DifferentiableFunc< SCALAR >:

Public Types
using	FB = sopt::algorithm::ForwardBackward< SCALAR >
using	Real = typename FB::Real
using	t_Vector = typename FB::t_Vector
using	t_Gradient = typename FB::t_Gradient
using	t_LinearTransform = typename FB::t_LinearTransform

Public Member Functions
virtual void	log_message () const =0
virtual t_Gradient	gradient ()
virtual void	gradient (t_Vector &output, const t_Vector &image, const t_Vector &residual, const t_LinearTransform &Phi)=0
virtual Real	function (t_Vector const &image, t_Vector const &y, t_LinearTransform const &Phi)=0
Real	get_step_size () const

Detailed Description

template<typename SCALAR>
class DifferentiableFunc< SCALAR >

Definition at line 8 of file differentiable_func.h.

Member Typedef Documentation

FB

template<typename SCALAR >

using DifferentiableFunc< SCALAR >::FB = sopt::algorithm::ForwardBackward<SCALAR>

Definition at line 12 of file differentiable_func.h.

Real

template<typename SCALAR >

using DifferentiableFunc< SCALAR >::Real = typename FB::Real

Definition at line 13 of file differentiable_func.h.

t_Gradient

template<typename SCALAR >

using DifferentiableFunc< SCALAR >::t_Gradient = typename FB::t_Gradient

Definition at line 15 of file differentiable_func.h.

t_LinearTransform

template<typename SCALAR >

using DifferentiableFunc< SCALAR >::t_LinearTransform = typename FB::t_LinearTransform

Definition at line 16 of file differentiable_func.h.

t_Vector

template<typename SCALAR >

using DifferentiableFunc< SCALAR >::t_Vector = typename FB::t_Vector

Definition at line 14 of file differentiable_func.h.

Member Function Documentation

function()

template<typename SCALAR >

virtual Real DifferentiableFunc< SCALAR >::function ( t_Vector const &  image, t_Vector const &  y, t_LinearTransform const &  Phi  )

pure virtual

Implemented in sopt::ONNXDifferentiableFunc< SCALAR >, and sopt::L2DifferentiableFunc< SCALAR >.

get_step_size()

template<typename SCALAR >

Real DifferentiableFunc< SCALAR >::get_step_size ( ) const

inline

Definition at line 38 of file differentiable_func.h.

  {
    return step_size;
  }

gradient() [1/2]

template<typename SCALAR >

virtual t_Gradient DifferentiableFunc< SCALAR >::gradient ( )

inlinevirtual

Definition at line 24 of file differentiable_func.h.

  {
    return [this](t_Vector &output, const t_Vector &image, const t_Vector &residual,
                  const t_LinearTransform &Phi) -> void { this->gradient(output, image, residual, Phi); };
  }

gradient() [2/2]

template<typename SCALAR >

virtual void DifferentiableFunc< SCALAR >::gradient ( t_Vector &  output, const t_Vector &  image, const t_Vector &  residual, const t_LinearTransform &  Phi  )

pure virtual

Implemented in sopt::ONNXDifferentiableFunc< SCALAR >, and sopt::L2DifferentiableFunc< SCALAR >.

log_message()

template<typename SCALAR >

virtual void DifferentiableFunc< SCALAR >::log_message ( ) const

pure virtual

Implemented in sopt::ONNXDifferentiableFunc< SCALAR >, and sopt::L2DifferentiableFunc< SCALAR >.

---

The documentation for this class was generated from the following file:

• /home/runner/work/sopt/sopt/cpp/sopt/differentiable_func.h
