conjugate_gradient.cc File Reference

#include <exception>
#include "sopt/conjugate_gradient.h"
#include "sopt/types.h"

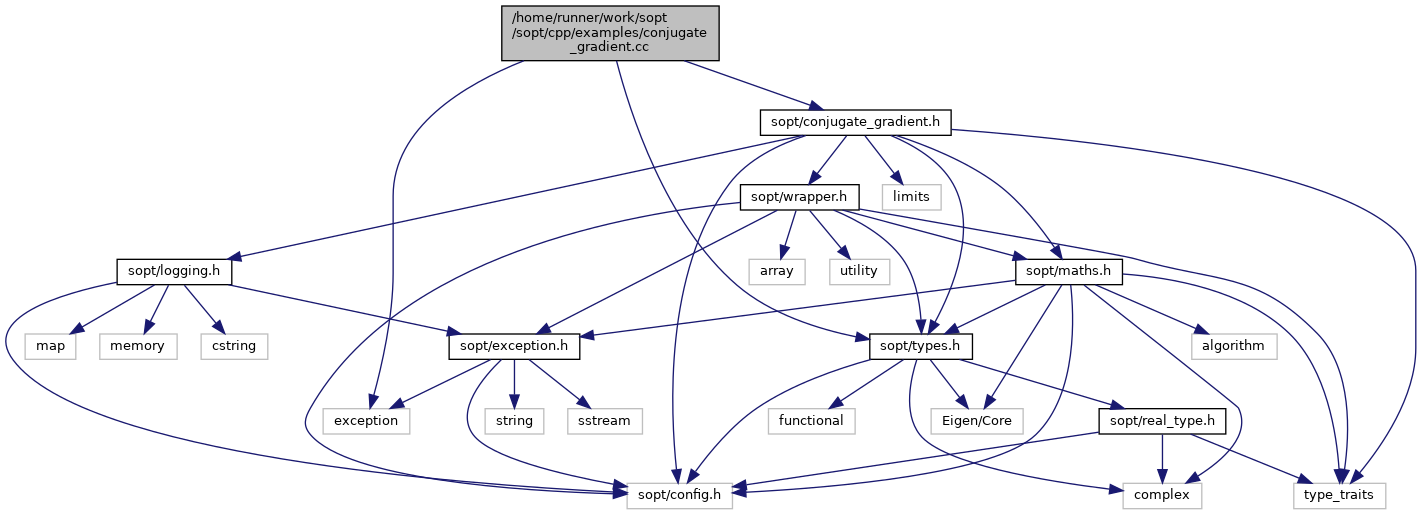

Include dependency graph for conjugate_gradient.cc:

Go to the source code of this file.

Functions
int	main (int, char const **)

Function Documentation

main()

int main	(	int	,
		char const **
	)

Definition at line 5 of file conjugate_gradient.cc.

                             {
  // Conjugate-gradient solves  Ax=b, where A is positive definite.
  // The input to our conjugate gradient can be a matrix or a function
  // Lets try both approaches.

  // Creates the input.
  using t_Vector = sopt::Vector<sopt::t_complex>;
  using t_Matrix = sopt::Matrix<sopt::t_complex>;
  t_Vector const b = t_Vector::Random(8);
  t_Matrix const A = t_Matrix::Random(b.size(), b.size());

  // Transform to solvable problem A^hA x = A^hb, where A^h is the conjugate transpose
  t_Matrix const AhA = A.conjugate().transpose() * A;
  t_Vector const Ahb = A.conjugate().transpose() * b;
  // The same transform can be realised using a function, where out = A^h * A * input.
  // This will recompute AhA every time the function is applied by the conjugate gradient. It is not
  // optmial for this case. But the function interface means A could be an FFT.
  auto aha_function = [&A](t_Vector &out, t_Vector const &input) {
    out = A.conjugate().transpose() * A * input;
  };

  // Conjugate gradient with unlimited iterations and a convergence criteria of 1e-12
  sopt::ConjugateGradient const cg(std::numeric_limits<sopt::t_uint>::max(), 1e-12);

  // Call conjugate gradient using both approaches
  auto as_matrix = cg(AhA, Ahb);
  auto as_function = cg(aha_function, Ahb);

  // Check result
  if (not(as_matrix.good and as_function.good)) throw std::runtime_error("Expected convergence");
  if (as_matrix.niters != as_function.niters)
    throw std::runtime_error("Expected same number of iterations");
  if (as_matrix.residual > cg.tolerance() or as_function.residual > cg.tolerance())
    throw std::runtime_error("Expected better convergence");
  if (not as_matrix.result.isApprox(as_function.result, 1e-6))
    throw std::runtime_error("Expected same result");
  if (not(A * as_matrix.result).isApprox(b, 1e-6))
    throw std::runtime_error("Expected solution to Ax=b");

  return 0;
}

References b, and sopt::ConjugateGradient::tolerance().
