forward_backward.cc File Reference

#include <catch2/catch_all.hpp>
#include <random>
#include <vector>
#include <Eigen/Dense>
#include "sopt/imaging_forward_backward.h"
#include "sopt/l1_non_diff_function.h"
#include "sopt/logging.h"
#include "sopt/maths.h"
#include "sopt/proximal.h"
#include "sopt/types.h"
#include "tools_for_tests/directories.h"
#include "tools_for_tests/tiffwrappers.h"

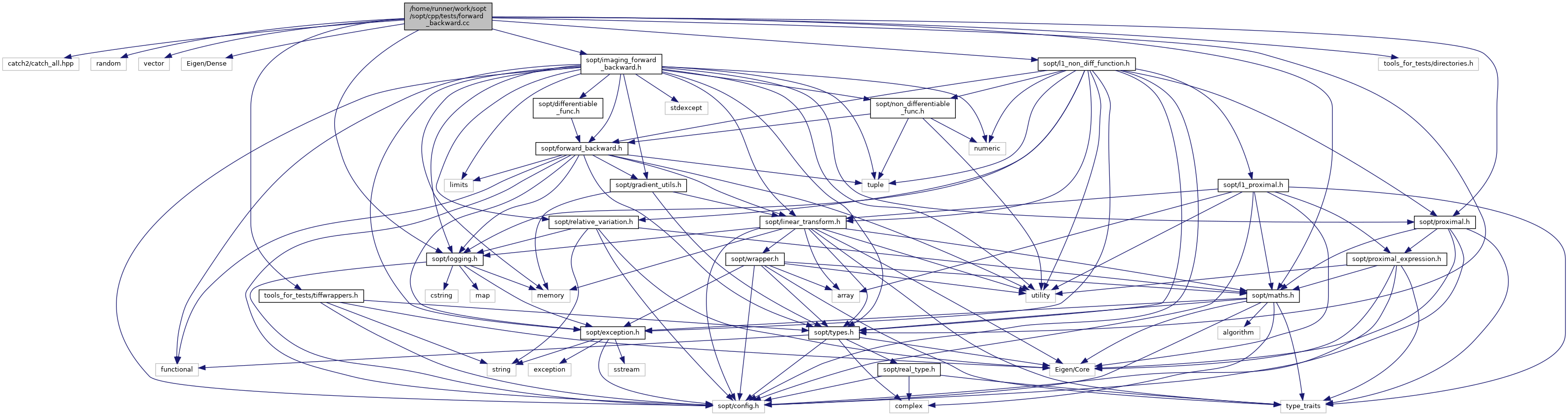

Include dependency graph for forward_backward.cc:

Go to the source code of this file.

Classes
struct	is_imaging_proximal_ref< T >
struct	is_l1_g_proximal_ref< T >

Typedefs
using	Scalar = sopt::t_real
using	t_Vector = sopt::Vector< Scalar >
using	t_LinearTransform = sopt::LinearTransform< t_Vector >
using	t_real = sopt::t_real

Functions
sopt::t_int	random_integer (sopt::t_int min, sopt::t_int max)
	TEST_CASE ("Forward Backward with ||x - x0||_2^2 function", "[fb]")
	TEST_CASE ("Check type returned on setting variables")

Variables
constexpr auto	N = 5

Typedef Documentation

Scalar

using Scalar = sopt::t_real

Definition at line 25 of file forward_backward.cc.

t_LinearTransform

using t_LinearTransform = sopt::LinearTransform<t_Vector>

Definition at line 27 of file forward_backward.cc.

t_real

using t_real = sopt::t_real

Definition at line 28 of file forward_backward.cc.

t_Vector

using t_Vector = sopt::Vector<Scalar>

Definition at line 26 of file forward_backward.cc.

Function Documentation

random_integer()

sopt::t_int random_integer	(	sopt::t_int	min,
		sopt::t_int	max
	)

Definition at line 19 of file forward_backward.cc.

                                                       {
  extern std::unique_ptr<std::mt19937_64> mersenne;
  std::uniform_int_distribution<sopt::t_int> uniform_dist(min, max);
  return uniform_dist(*mersenne);
};

References mersenne().

TEST_CASE() [1/2]

TEST_CASE

(

"Check type returned on setting variables"

)

Definition at line 69 of file forward_backward.cc.

                                                      {
  // Yeah, could be static asserts
  using namespace sopt;
  using namespace sopt::algorithm;
  ImagingForwardBackward<double> fb(Vector<double>::Zero(0).eval());
  CHECK(is_imaging_proximal_ref<decltype(fb.itermax(500))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.step_size(1e-1))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.regulariser_strength(1e-1))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.sigma(1e-1))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.residual_convergence(1.001))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.target(Vector<double>::Zero(0)))>::value);
  using ConvFunc = ConvergenceFunction<double>;
  CHECK(is_imaging_proximal_ref<decltype(fb.is_converged(std::declval<ConvFunc>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.is_converged(std::declval<ConvFunc &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.is_converged(std::declval<ConvFunc &&>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.is_converged(std::declval<ConvFunc const &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.relative_variation(5e-4))>::value);
  CHECK(is_imaging_proximal_ref<decltype(fb.tight_frame(false))>::value);

  // Test the types of the l1 g_proximal object separately
  auto gp = std::make_shared<sopt::algorithm::L1GProximal<Scalar>>(false);
  CHECK(is_l1_g_proximal_ref<decltype(gp->l1_proximal_tolerance(1e-2))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->l1_proximal_nu(1))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->l1_proximal_itermax(50))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->l1_proximal_positivity_constraint(true))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->l1_proximal_real_constraint(true))>::value);
  using LinTrans = LinearTransform<Vector<double>>;
  CHECK(is_l1_g_proximal_ref<decltype(gp->Psi(linear_transform_identity<double>()))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->Psi(std::declval<LinTrans>()))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->Psi(std::declval<LinTrans &&>()))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->Psi(std::declval<LinTrans &>()))>::value);
  CHECK(is_l1_g_proximal_ref<decltype(gp->Psi(std::declval<LinTrans const &>()))>::value);
}

References sopt::algorithm::ImagingForwardBackward< SCALAR >::is_converged(), sopt::algorithm::ImagingForwardBackward< SCALAR >::residual_convergence(), and sopt::algorithm::ImagingForwardBackward< SCALAR >::target().

TEST_CASE() [2/2]

TEST_CASE	(	"Forward Backward with ||x - x0||_2^2 function"	,
		""	[fb]
	)

Definition at line 31 of file forward_backward.cc.

                                                                   {
  using namespace sopt;
  t_Vector const target0 = t_Vector::Random(N);
  t_real constexpr beta = 0.2;
  t_real constexpr regulariser_strength = 0.1;
  int constexpr itermax = 300;
  auto const g0 = [](t_Vector &out, const t_real regulariser_strength, const t_Vector &x) {
    proximal::id(out, regulariser_strength, x);
  };
  auto const grad = [](t_Vector &out, const t_Vector image, const t_Vector &res,
                       const t_LinearTransform &Phi) { out = Phi.adjoint() * res; };
  const t_Vector x_guess = t_Vector::Random(target0.size());
  const t_Vector res = x_guess - target0;
  auto const convergence = [&target0](const t_Vector &x, const t_Vector &res) -> bool {
    return x.isApprox(target0, 1e-9);
  };
  CAPTURE(target0);
  CAPTURE(x_guess);
  CAPTURE(res);
  auto fb = algorithm::ForwardBackward<Scalar>(grad, g0, target0)
                      .itermax(itermax)
                      .regulariser_strength(regulariser_strength)
                      .step_size(beta)
                      .is_converged(convergence);
  auto const result = fb(std::make_tuple(x_guess, res));
  CAPTURE(result.niters);
  CAPTURE(result.x);
  CAPTURE(result.residual);
  CHECK(result.x.isApprox(target0, 1e-9));
  CHECK(result.good);
  CHECK(result.niters < itermax);
}

References sopt::proximal::id(), and N.

Variable Documentation

N

constexpr auto N = 5

constexpr

Definition at line 29 of file forward_backward.cc.

Referenced by TEST_CASE().
