ort_model.cc File Reference

#include <catch2/catch_all.hpp>
#include <Eigen/Core>
#include "sopt/ort_session.h"
#include "sopt/utilities.h"
#include "tools_for_tests/directories.h"

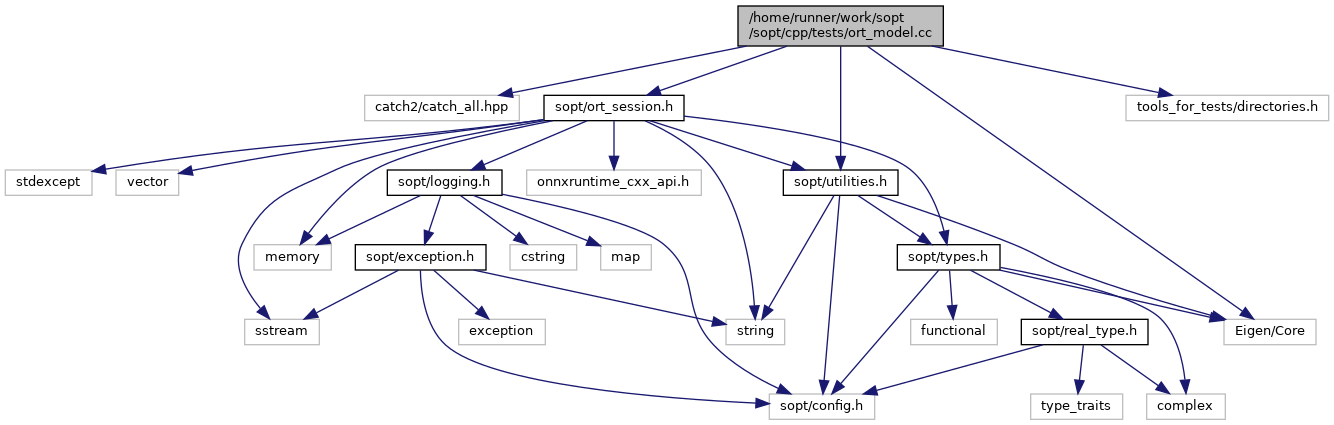

Include dependency graph for ort_model.cc:

Go to the source code of this file.

Functions
	TEST_CASE ("Load an example ORT model", "[ONNXrt]")
	TEST_CASE ("Check metadata of an example ORT model", "[ONNXrt]")
	TEST_CASE ("Check forward folding of an example ORT model using std::vectors", "[ONNXrt]")
	TEST_CASE ("Check forward folding of an example ORT model using sopt::Vectors", "[ONNXrt]")

Function Documentation

TEST_CASE() [1/4]

TEST_CASE	(	"Check forward folding of an example ORT model using sopt::Vectors"	,
		""	[ONNXrt]
	)

Definition at line 59 of file ort_model.cc.

                                                                                         {

  const std::string path(sopt::tools::models_directory());
  ORTsession model(path+"/example_grad_dynamic_CRR_sigma_5_t_5.onnx");

  const size_t nROWS = 256, nCOLS = 256;
  const size_t input_size = 1 * nROWS * nCOLS;
  // This network metadata contains an example
  // input vector and reference output vector
  std::vector<float> input_values, expected_values;
  input_values.reserve(input_size);
  expected_values.reserve(input_size);
  input_values = utilities::split<float>(model.retrieve<std::string>("x_init"), ",");
  expected_values = utilities::split<float>(model.retrieve<std::string>("x_exp"), ",");

  // convert flat vectors to sopt::Vector
  Vector<double> inputT(input_values.size());
  Vector<double> refT(expected_values.size());
  for (size_t i = 0; i < input_values.size(); ++i) {
    inputT[i] = input_values[i];
    refT[i] = expected_values[i];
  }

  // forward fold using sopt::Vector
  Vector<double> outputT = model.compute(inputT,{1,nROWS,nCOLS});

  // compare output tensor to reference tensor
  // calculate mean squared error sum_i ( ( x_true(i) - x_est(i) ) **2 )
  // check this is less than the number of pixels * 0.01
  auto mse = (outputT - refT).squaredNorm() / outputT.size();
  CAPTURE(mse);
  CHECK(mse < 0.01);
}

References sopt::ORTsession::compute(), sopt::tools::models_directory(), and sopt::ORTsession::retrieve().

TEST_CASE() [2/4]

TEST_CASE	(	"Check forward folding of an example ORT model using std::vectors"	,
		""	[ONNXrt]
	)

Definition at line 28 of file ort_model.cc.

                                                                                        {

  const std::string path(sopt::tools::models_directory());
  ORTsession model(path+"/example_grad_dynamic_CRR_sigma_5_t_5.onnx");

  const size_t nROWS = 256, nCOLS = 256;
  const size_t input_size = 1 * nROWS * nCOLS;
  // This network metadata contains an example
  // input vector and reference output vector
  std::vector<float> input_values, expected_values;
  input_values.reserve(input_size);
  expected_values.reserve(input_size);
  input_values = utilities::split<float>(model.retrieve<std::string>("x_init"), ",");
  expected_values = utilities::split<float>(model.retrieve<std::string>("x_exp"), ",");

  // forward fold
  std::vector<float> output_values = model.compute(input_values, {1,nROWS,nCOLS});

  // calculate mean squared error sum_i ( ( x_true(i) - x_est(i) ) **2 )
  // check this is less than the number of pixels * 0.01
  double mse = 0.0;
  for (size_t i = 0; i < output_values.size(); ++i) {
    double diff = output_values[i] - expected_values[i];
    mse += diff*diff;
  }
  mse /= output_values.size();

  CAPTURE(mse);
  CHECK(mse < 0.01);
}

References sopt::ORTsession::compute(), sopt::gradient_operator::diff(), sopt::tools::models_directory(), and sopt::ORTsession::retrieve().

TEST_CASE() [3/4]

TEST_CASE	(	"Check metadata of an example ORT model"	,
		""	[ONNXrt]
	)

Definition at line 17 of file ort_model.cc.

                                                                {

  const std::string path(sopt::tools::models_directory());
  ORTsession model(path+"/example_grad_dynamic_CRR_sigma_5_t_5.onnx");

  const double L = model.retrieve<double>("L_CRR");
  const double L_ref = 0.769605;

  CHECK(abs(L_ref - L) < 1e-6*L_ref);
}

References sopt::tools::models_directory(), and sopt::ORTsession::retrieve().

TEST_CASE() [4/4]

TEST_CASE	(	"Load an example ORT model"	,
		""	[ONNXrt]
	)

Definition at line 9 of file ort_model.cc.

                                                   {

  const std::string path(sopt::tools::models_directory());
  ORTsession model(path+"/example_grad_dynamic_CRR_sigma_5_t_5.onnx");

  CHECK(true);
}

References sopt::tools::models_directory().
