padmm.cc File Reference

#include <catch2/catch_all.hpp>
#include <random>
#include <Eigen/Dense>
#include "sopt/imaging_padmm.h"
#include "sopt/padmm.h"
#include "sopt/proximal.h"
#include "sopt/types.h"

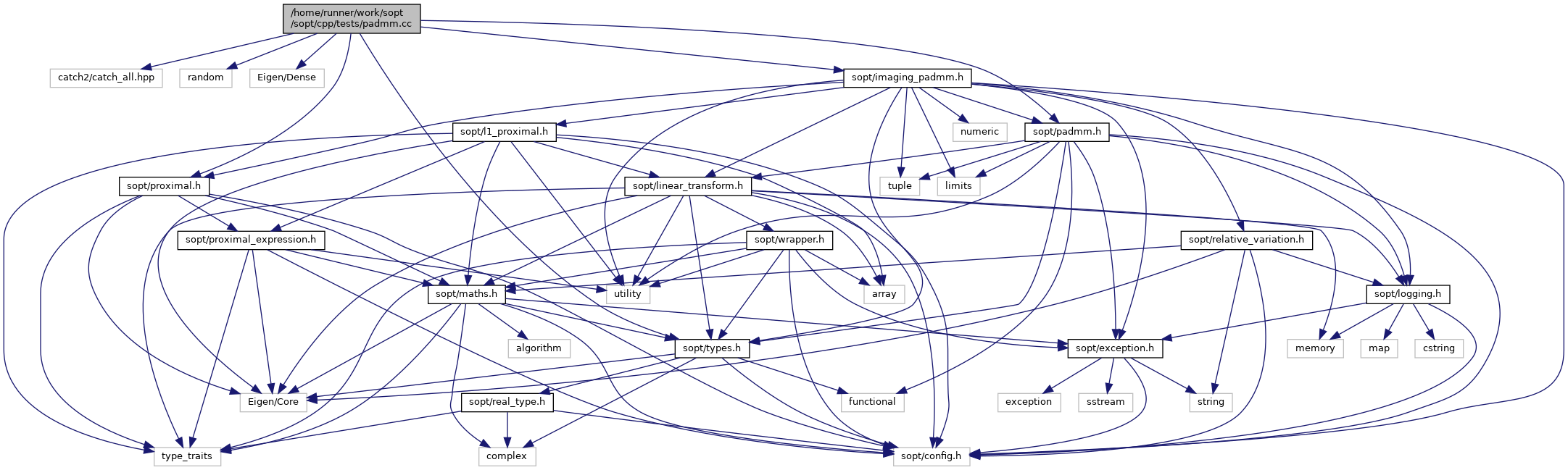

Include dependency graph for padmm.cc:

Go to the source code of this file.

Classes
struct	is_imaging_proximal_ref< T >

Typedefs
using	Scalar = sopt::t_real
using	t_Vector = sopt::Vector< Scalar >
using	t_Matrix = sopt::Matrix< Scalar >

Functions
sopt::t_int	random_integer (sopt::t_int min, sopt::t_int max)
	TEST_CASE ("Proximal ADMM with ||x - x0||_2 functions", "[padmm][integration]")
	TEST_CASE ("Check type returned on setting variables")

Variables
constexpr auto	N = 5

Typedef Documentation

Scalar

using Scalar = sopt::t_real

Definition at line 17 of file padmm.cc.

t_Matrix

using t_Matrix = sopt::Matrix<Scalar>

Definition at line 19 of file padmm.cc.

t_Vector

using t_Vector = sopt::Vector<Scalar>

Definition at line 18 of file padmm.cc.

Function Documentation

random_integer()

sopt::t_int random_integer	(	sopt::t_int	min,
		sopt::t_int	max
	)

Definition at line 11 of file padmm.cc.

                                                       {
  extern std::unique_ptr<std::mt19937_64> mersenne;
  std::uniform_int_distribution<sopt::t_int> uniform_dist(min, max);
  return uniform_dist(*mersenne);
};

References mersenne().

TEST_CASE() [1/2]

TEST_CASE

(

"Check type returned on setting variables"

)

Definition at line 51 of file padmm.cc.

                                                      {
  // Yeah, could be static asserts
  using namespace sopt;
  using namespace sopt::algorithm;
  ImagingProximalADMM<double> admm(Vector<double>::Zero(0));
  CHECK(is_imaging_proximal_ref<decltype(admm.itermax(500))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.regulariser_strength(1e-1))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.relative_variation(5e-4))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l2ball_proximal_epsilon(1e-4))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.tight_frame(false))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l1_proximal_tolerance(1e-2))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l1_proximal_nu(1))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l1_proximal_itermax(50))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l1_proximal_positivity_constraint(true))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.l1_proximal_real_constraint(true))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.residual_convergence(1.001))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.lagrange_update_scale(0.9))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.target(Vector<double>::Zero(0)))>::value);
  using ConvFunc = ConvergenceFunction<double>;
  CHECK(is_imaging_proximal_ref<decltype(admm.is_converged(std::declval<ConvFunc>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.is_converged(std::declval<ConvFunc &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.is_converged(std::declval<ConvFunc &&>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(
            admm.is_converged(std::declval<ConvFunc const &>()))>::value);
  using LinTrans = LinearTransform<Vector<double>>;
  CHECK(is_imaging_proximal_ref<decltype(admm.Phi(linear_transform_identity<double>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Phi(std::declval<LinTrans>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Phi(std::declval<LinTrans &&>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Phi(std::declval<LinTrans &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Phi(std::declval<LinTrans const &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Psi(linear_transform_identity<double>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Psi(std::declval<LinTrans>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Psi(std::declval<LinTrans &&>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Psi(std::declval<LinTrans &>()))>::value);
  CHECK(is_imaging_proximal_ref<decltype(admm.Psi(std::declval<LinTrans const &>()))>::value);
}

References sopt::algorithm::ImagingProximalADMM< SCALAR >::is_converged(), sopt::algorithm::ImagingProximalADMM< SCALAR >::Phi(), sopt::algorithm::ImagingProximalADMM< SCALAR >::Psi(), sopt::algorithm::ImagingProximalADMM< SCALAR >::residual_convergence(), and sopt::algorithm::ImagingProximalADMM< SCALAR >::target().

TEST_CASE() [2/2]

TEST_CASE	(	"Proximal ADMM with ||x - x0||_2 functions"	,
		""	[padmm][integration]
	)

Definition at line 23 of file padmm.cc.

                                                                               {
  using namespace sopt;
  t_Vector const target0 = t_Vector::Random(N);
  t_Vector const target1 = t_Vector::Random(N) * 4;
  auto const g0 = proximal::translate(proximal::EuclidianNorm(), -target0);
  auto const g1 = proximal::translate(proximal::EuclidianNorm(), -target1);

  t_Matrix const mId = -t_Matrix::Identity(N, N);

  t_Vector const translation = t_Vector::Ones(N) * 5;
  auto const padmm =
      algorithm::ProximalADMM<Scalar>(g0, g1, t_Vector::Zero(N)).Phi(mId).itermax(3000).regulariser_strength(0.01);
  auto const result = padmm();

  t_Vector const segment = (target1 - target0).normalized();
  t_real const alpha = (result.x - target0).transpose() * segment;

  CHECK((target1 - target0).transpose() * segment >= alpha);
  CHECK(alpha >= 0e0);
  CAPTURE(segment.transpose());
  CAPTURE((result.x - target0).transpose());
  CAPTURE((result.x - target1).transpose());
  CHECK((result.x - target0 - alpha * segment).stableNorm() < 1e-8);
}

References N, sopt::algorithm::ProximalADMM< SCALAR >::Phi(), and sopt::proximal::translate().

Variable Documentation

N

constexpr auto N = 5

constexpr

Definition at line 21 of file padmm.cc.

Referenced by TEST_CASE().
