pd_inpainting.cc File Reference

#include <algorithm>
#include <exception>
#include <functional>
#include <iostream>
#include <random>
#include <vector>
#include <ctime>
#include <catch2/catch_all.hpp>
#include "sopt/imaging_primal_dual.h"
#include "sopt/l1_non_diff_function.h"
#include "sopt/logging.h"
#include "sopt/maths.h"
#include "sopt/relative_variation.h"
#include "sopt/sampling.h"
#include "sopt/types.h"
#include "sopt/utilities.h"
#include "sopt/wavelets.h"
#include "tools_for_tests/directories.h"
#include "tools_for_tests/tiffwrappers.h"

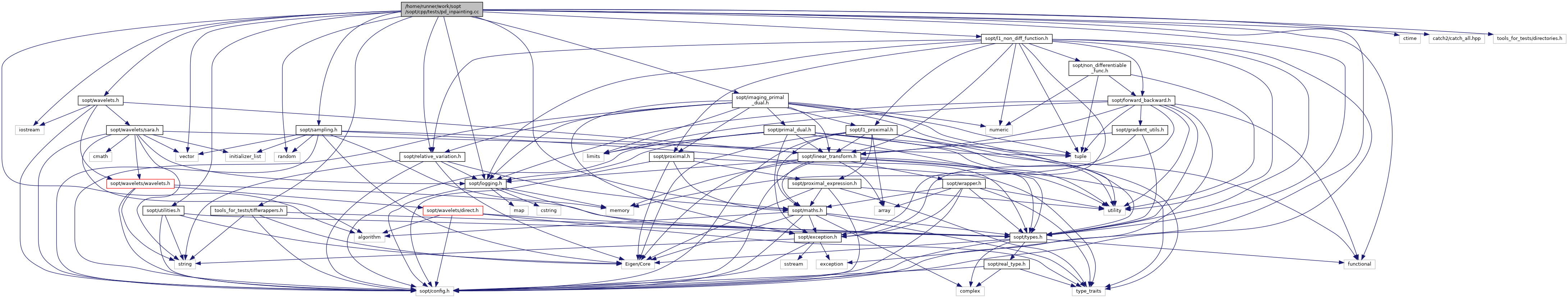

Include dependency graph for pd_inpainting.cc:

Go to the source code of this file.

Typedefs
using	Scalar = double
using	Vector = sopt::Vector< Scalar >
using	Matrix = sopt::Matrix< Scalar >
using	Image = sopt::Image< Scalar >

Functions
	TEST_CASE ("Primal Dual Inpainting")

Typedef Documentation


using Image = sopt::Image<Scalar>

Definition at line 30 of file pd_inpainting.cc.

Matrix

using Matrix = sopt::Matrix<Scalar>

Definition at line 29 of file pd_inpainting.cc.

Scalar

using Scalar = double

Definition at line 27 of file pd_inpainting.cc.

Vector

using Vector = sopt::Vector<Scalar>

Definition at line 28 of file pd_inpainting.cc.

Function Documentation

TEST_CASE()

TEST_CASE

(

"Primal Dual Inpainting"

)

Definition at line 32 of file pd_inpainting.cc.

                                   {
  extern std::unique_ptr<std::mt19937_64> mersenne;
  std::string const input = "cameraman256";

  Image const image = sopt::tools::read_standard_tiff(input);

  sopt::t_uint const nmeasure = std::floor(0.5 * image.size());
  sopt::LinearTransform<Vector> const sampling =
      sopt::linear_transform<Scalar>(sopt::Sampling(image.size(), nmeasure, *mersenne));

  auto const wavelet = sopt::wavelets::factory("DB8", 4);

  auto const psi = sopt::linear_transform<Scalar>(wavelet, image.rows(), image.cols());

  Vector const y0 = sampling * Vector::Map(image.data(), image.size());
  auto constexpr snr = 30.0;
  auto const sigma = y0.stableNorm() / std::sqrt(y0.size()) * std::pow(10.0, -(snr / 20.0));
  auto const epsilon = std::sqrt(nmeasure + 2 * std::sqrt(y0.size())) * sigma;

  std::normal_distribution<> gaussian_dist(0, sigma);
  Vector y(y0.size());
  for (sopt::t_int i = 0; i < y0.size(); i++) y(i) = y0(i) + gaussian_dist(*mersenne);

  Eigen::VectorXd dirty_image = sampling.adjoint() * y;

  sopt::t_real const regulariser_strength = (psi.adjoint() * (sampling.adjoint() * y)).real().maxCoeff() * 1e-2;

  auto pd = sopt::algorithm::ImagingPrimalDual<Scalar>(y)
                        .Phi(sampling)
                        .Psi(psi)
                        .itermax(500)
                        .tau(0.5)
                        .regulariser_strength(regulariser_strength)
                        .l2ball_proximal_epsilon(epsilon)
                        .relative_variation(5e-4)
                        .residual_convergence(epsilon)
                        .positivity_constraint(true);

  auto const diagnostic = pd();

  CHECK(diagnostic.good);
  CHECK(diagnostic.niters < 500);

  // compare input image to cleaned output image
  // calculate mean squared error sum_i ( ( x_true(i) - x_est(i) ) **2 )
  // check this is less than the number of pixels * 0.01
  sopt::utilities::write_tiff(Matrix::Map(diagnostic.x.data(), image.rows(), image.cols()),
                                "pd_reconstruction.tiff");
  sopt::utilities::write_tiff(Matrix::Map(dirty_image.data(), image.rows(), image.cols()),
                                "pd_dirty.tiff");
  Eigen::Map<const Eigen::VectorXd> flat_image(image.data(), image.size());
  auto mse = (flat_image - diagnostic.x).array().square().sum() / image.size();
  CAPTURE(mse);
  SOPT_HIGH_LOG("MSE: {}", mse);
  CHECK(mse < 0.01);
}

References sopt::LinearTransform< VECTOR >::adjoint(), sopt::epsilon(), sopt::wavelets::factory(), mersenne(), sopt::algorithm::ImagingPrimalDual< SCALAR >::Phi(), sopt::algorithm::ImagingPrimalDual< SCALAR >::Psi(), sopt::tools::read_standard_tiff(), sopt::algorithm::ImagingPrimalDual< SCALAR >::residual_convergence(), sopt::sigma(), SOPT_HIGH_LOG, and sopt::utilities::write_tiff().
