stochastic_update.cc File Reference

#include <algorithm>
#include <exception>
#include <functional>
#include <iostream>
#include <random>
#include <vector>
#include <ctime>
#include <catch2/catch_all.hpp>
#include "sopt/imaging_forward_backward.h"
#include "sopt/l1_non_diff_function.h"
#include "sopt/logging.h"
#include "sopt/maths.h"
#include "sopt/relative_variation.h"
#include "sopt/sampling.h"
#include "sopt/types.h"
#include "sopt/utilities.h"
#include "sopt/wavelets.h"
#include "sopt/gradient_utils.h"
#include "tools_for_tests/directories.h"
#include "tools_for_tests/tiffwrappers.h"

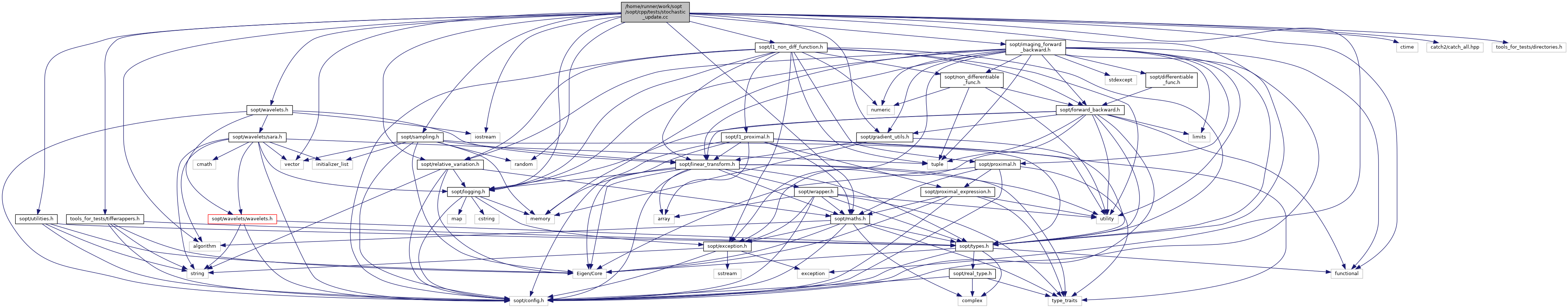

Include dependency graph for stochastic_update.cc:

Go to the source code of this file.

Typedefs
using	Scalar = double
using	Vector = sopt::Vector< Scalar >
using	Matrix = sopt::Matrix< Scalar >
using	Image = sopt::Image< Scalar >

Functions
	TEST_CASE ("Inpainting")

Typedef Documentation


using Image = sopt::Image<Scalar>

Definition at line 31 of file stochastic_update.cc.

Matrix

using Matrix = sopt::Matrix<Scalar>

Definition at line 30 of file stochastic_update.cc.

Scalar

using Scalar = double

Definition at line 28 of file stochastic_update.cc.

Vector

using Vector = sopt::Vector<Scalar>

Definition at line 29 of file stochastic_update.cc.

Function Documentation

TEST_CASE()

TEST_CASE

(

"Inpainting"

)

Definition at line 33 of file stochastic_update.cc.

                       {
  extern std::unique_ptr<std::mt19937_64> mersenne;
  std::string const input = "cameraman256";

  Image const image = sopt::tools::read_standard_tiff(input);

  auto const wavelet = sopt::wavelets::factory("DB8", 4);

  auto const psi = sopt::linear_transform<Scalar>(wavelet, image.rows(), image.cols());
  size_t nmeasure = static_cast<size_t>(image.size() * 0.5);

  double constexpr snr = 30.0;
  std::shared_ptr<sopt::LinearTransform<Vector>> Phi =
      std::make_shared<sopt::LinearTransform<Vector>>(
          sopt::linear_transform<Scalar>(sopt::Sampling(image.size(), nmeasure, *mersenne)));
  Vector y = (*Phi) * Vector::Map(image.data(), image.size());

  auto sigma = y.stableNorm() / std::sqrt(y.size()) * std::pow(10.0, -(snr / 20.0));
  sopt::t_real constexpr regulariser_strength = 18;
  sopt::t_real const beta = sigma*sigma*0.5;

  // Define a stochostic target/operator updater!
  std::unique_ptr<std::mt19937_64> *m = &mersenne;
  std::function<std::shared_ptr<sopt::IterationState<Vector>>()> random_updater = [&image, m, sigma, nmeasure](){
    double constexpr snr = 30.0;
    std::shared_ptr<sopt::LinearTransform<Vector>> Phi =
      std::make_shared<sopt::LinearTransform<Vector>>(sopt::linear_transform<Scalar>(sopt::Sampling(image.size(), nmeasure, **m)));
    Vector y = (*Phi) * Vector::Map(image.data(), image.size());

    std::normal_distribution<> gaussian_dist(0, sigma);
    for (sopt::t_int i = 0; i < y.size(); i++) y(i) = y(i) + gaussian_dist(*mersenne);

    return std::make_shared<sopt::IterationState<Vector>>(y, Phi);
  };

  auto fb = sopt::algorithm::ImagingForwardBackward<Scalar>(random_updater);
  fb.itermax(1000)
    .step_size(beta)    // stepsize
    .sigma(sigma)  // sigma
    .regulariser_strength(regulariser_strength)  // regularisation paramater
    .relative_variation(1e-3)
    .residual_tolerance(0)
    .tight_frame(true);

  // Create a shared pointer to an instance of the L1GProximal class
  // and set its properties
  auto gp = std::make_shared<sopt::algorithm::L1GProximal<Scalar>>(false);
  gp->l1_proximal_tolerance(1e-4)
    .l1_proximal_nu(1)
    .l1_proximal_itermax(50)
    .l1_proximal_positivity_constraint(true)
    .l1_proximal_real_constraint(true)
    .Psi(psi);

  // Once the properties are set, inject it into the ImagingForwardBackward object
  fb.g_function(gp);

  auto const diagnostic = fb();

  CHECK(diagnostic.good);
  CHECK(diagnostic.niters < 500);

  // compare input image to cleaned output image
  // calculate mean squared error sum_i ( ( x_true(i) - x_est(i) ) **2 )
  // check this is less than the number of pixels * 0.01

  Eigen::Map<const Eigen::VectorXd> flat_image(image.data(), image.size());
  auto mse = (flat_image - diagnostic.x).array().square().sum() / image.size();
  CAPTURE(mse);
  CHECK(mse < 0.01);
}

References sopt::wavelets::factory(), mersenne(), sopt::tools::read_standard_tiff(), and sopt::sigma().
