tv_inpainting.cc File Reference

#include "sopt/config.h"
#include "sopt/logging.h"
#include <algorithm>
#include <exception>
#include <functional>
#include <iostream>
#include <random>
#include <vector>
#include <ctime>
#include <Eigen/Eigenvalues>
#include "sopt/types.h"
#include "sopt/gradient_operator.h"
#include "sopt/maths.h"
#include "sopt/power_method.h"
#include "sopt/relative_variation.h"
#include "sopt/sampling.h"
#include "sopt/tv_primal_dual.h"
#include "sopt/utilities.h"
#include "tools_for_tests/directories.h"
#include "tools_for_tests/tiffwrappers.h"

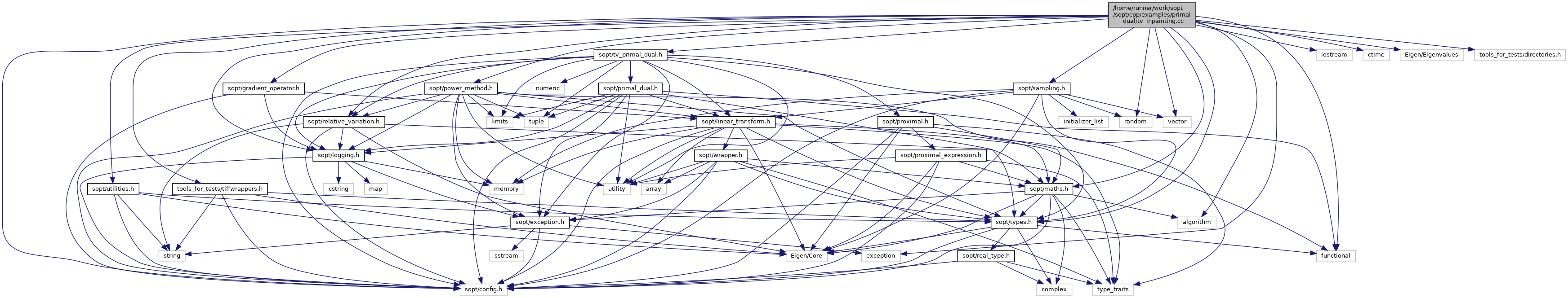

Include dependency graph for tv_inpainting.cc:

Go to the source code of this file.

Functions
int	main (int argc, char const **argv)

Function Documentation

main()

int main	(	int	argc,
		char const **	argv
	)

Definition at line 29 of file tv_inpainting.cc.

                                      {
  // Some type aliases for simplicity
  using Scalar = double;
  // Column vector - linear algebra - A * x is a matrix-vector multiplication
  // type expected by PrimalDual
  using Vector = sopt::Vector<Scalar>;

  //  using Complex = sopt::Vector<sopt::t_complex>;
  // Matrix - linear algebra - A * x is a matrix-vector multiplication
  // type expected by PrimalDual
  using Matrix = sopt::Matrix<Scalar>;
  // Image - 2D array - A * x is a coefficient-wise multiplication
  // Type expected by wavelets and image write/read functions
  using Image = sopt::Image<Scalar>;

  std::string const input = argc >= 2 ? argv[1] : "cameraman256";
  std::string const output = argc == 3 ? argv[2] : "none";
  if (argc > 3) {
    std::cout << "Usage:\n"
                 "$ "
              << argv[0]
              << " [input [output]]\n\n"
                 "- input: path to the image to clean (or name of standard SOPT image)\n"
                 "- output: filename pattern for output image\n";
    exit(0);
  }
  // Set up random numbers for C and C++
  auto const seed = std::time(nullptr);
  std::srand(static_cast<unsigned int>(seed));
  std::mt19937 mersenne(std::time(nullptr));

  SOPT_HIGH_LOG("Read input file {}", input);
  Image const image = sopt::tools::read_standard_tiff(input);

  SOPT_HIGH_LOG("Initializing sensing operator");
  sopt::t_uint const nmeasure = 0.33 * image.size();
  auto const sampling =
      sopt::linear_transform<Scalar>(sopt::Sampling(image.size(), nmeasure, mersenne));

  SOPT_HIGH_LOG("Initializing wavelets");

  auto const psi = sopt::gradient_operator::gradient_operator<Scalar>(image.rows(), image.cols());

  SOPT_HIGH_LOG("Computing primal-dual parameters");
  Vector const y0 = sampling * Vector::Map(image.data(), image.size());

  auto constexpr snr = 30.0;
  auto const sigma = y0.stableNorm() / std::sqrt(y0.size()) * std::pow(10.0, -(snr / 20.0));
  auto const epsilon = std::sqrt(nmeasure + 2 * std::sqrt(y0.size())) * sigma;

  SOPT_HIGH_LOG("Create dirty vector");
  std::normal_distribution<> gaussian_dist(0, sigma);
  Vector y(y0.size());
  for (sopt::t_int i = 0; i < y0.size(); i++) y(i) = y0(i) + gaussian_dist(mersenne);
  // Write dirty image to file
  if (output != "none") {
    Vector const dirty = sampling.adjoint() * y;
    sopt::utilities::write_tiff(Matrix::Map(dirty.data(), image.rows(), image.cols()),
                                "dirty_" + output + ".tiff");
  }
  const Vector grad = psi.adjoint() * (sampling.adjoint() * y);
  const sopt::t_real regulariser_strength = (grad.segment(0, image.size()).array().square() +
                              grad.segment(image.size(), image.size()).array().square())
                                 .sqrt()
                                 .real()
                                 .maxCoeff() *
                             2e-2;

  SOPT_HIGH_LOG("Creating primal-dual Functor");
  auto const pd = sopt::algorithm::TVPrimalDual<Scalar>(y)
                      .itermax(2000)
                      .regulariser_strength(regulariser_strength)
                      .tau(0.5 / (1. + 1.))
                      .l2ball_proximal_epsilon(epsilon)
                      .Psi(psi)
                      .Phi(sampling)
                      .relative_variation(1e-4)
                      .residual_convergence(epsilon)
                      .positivity_constraint(true);

  SOPT_HIGH_LOG("Starting primal dual");
  // Alternatively, pd can be called with a tuple (x, residual) as argument
  // Here, we default to (Φ^Ty/ν, ΦΦ^Ty/ν - y)
  auto const diagnostic = pd();
  SOPT_HIGH_LOG("primal dual returned {}", diagnostic.good);

  // diagnostic should tell us the function converged
  // it also contains diagnostic.niters - the number of iterations, and cg_diagnostic - the
  // diagnostic from the last call to the conjugate gradient.
  if (not diagnostic.good) {
    SOPT_HIGH_LOG("SOPT-primal-dual converged in {} iterations", diagnostic.niters);
    // throw std::runtime_error("Did not converge!");
  }
  if (output != "none")
    sopt::utilities::write_tiff(Matrix::Map(diagnostic.x.data(), image.rows(), image.cols()),
                                output + ".tiff");

  return 0;
}

References sopt::dirty(), sopt::epsilon(), mersenne(), sopt::algorithm::TVPrimalDual< SCALAR >::Phi(), sopt::algorithm::TVPrimalDual< SCALAR >::Psi(), sopt::tools::read_standard_tiff(), sopt::algorithm::TVPrimalDual< SCALAR >::residual_convergence(), sopt::sigma(), SOPT_HIGH_LOG, and sopt::utilities::write_tiff().
