euclidian_norm.cc File Reference

#include <exception>
#include "sopt/padmm.h"
#include "sopt/proximal.h"
#include "sopt/relative_variation.h"
#include "sopt/types.h"

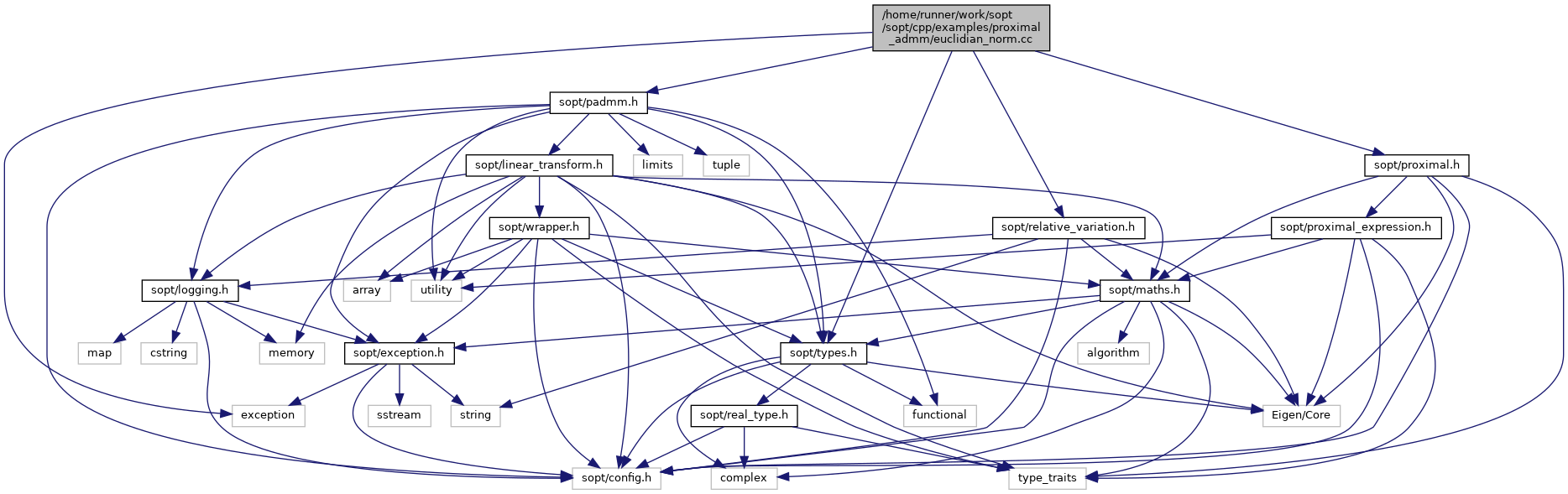

Include dependency graph for euclidian_norm.cc:

Go to the source code of this file.

Functions
int	main (int, char const **)

Function Documentation

main()

int main	(	int	,
		char const **
	)

Definition at line 8 of file euclidian_norm.cc.

                             {

  // Some type aliases for simplicity
  using t_Scalar = sopt::t_real;
  using t_Vector = sopt::Vector<t_Scalar>;
  using t_Matrix = sopt::Matrix<t_Scalar>;

  // Creates the target vectors
  auto constexpr N = 5;
  t_Vector const target0 = t_Vector::Random(N);
  t_Vector const target1 = t_Vector::Random(N) * 4;

  // Creates the resulting proximal
  // In practice g_0 and g_1 are any functions with the signature
  // void(t_Vector &output, t_Vector::Scalar regulariser_strength, t_Vector const &input)
  // They are the proximal of ||x - x_0|| and ||x - x_1||
  auto prox_g0 = sopt::proximal::translate(sopt::proximal::EuclidianNorm(), -target0);
  auto prox_g1 = sopt::proximal::translate(sopt::proximal::EuclidianNorm(), -target1);

  auto padmm = sopt::algorithm::ProximalADMM<t_Scalar>(prox_g0, prox_g1, t_Vector::Zero(N))
                   .itermax(5000)
                   .is_converged(sopt::RelativeVariation<t_Scalar>(1e-12))
                   .regulariser_strength(0.01)
                   // Phi == -1, so that we can minimize f(x) + g(x), as per problem definition in
                   // padmm.
                   .Phi(-t_Matrix::Identity(N, N));

  // Alternatively, padmm can be called with a tuple (x, residual) as argument
  // Here, we default to (Φ^Ty/ν, ΦΦ^Ty/ν - y)
  auto const diagnostic = padmm();

  // diagnostic should tell us the function converged
  // it also contains diagnostic.niters - the number of iterations, and cg_diagnostic - the
  // diagnostic from the last call to the conjugate gradient.
  if (not diagnostic.good) throw std::runtime_error("Did not converge!");

  // x should be any point on the segment linking x_0 and x_1
  t_Vector const segment = (target1 - target0).normalized();
  t_Scalar const alpha = (diagnostic.x - target0).transpose() * segment;
  if ((target1 - target0).transpose() * segment < alpha)
    throw std::runtime_error("Point beyond x_1 plane");
  if (alpha < 0e0) throw std::runtime_error("Point before x_0 plane");
  if ((diagnostic.x - target0 - alpha * segment).stableNorm() > 1e-8)
    throw std::runtime_error("Point not on (x_0, x_1) line");

  return 0;
}

References sopt::algorithm::ProximalADMM< SCALAR >::is_converged(), N, and sopt::proximal::translate().
